Racelogics range of LabSat GNSS simulators offer multi-constellation and multi-frequency capabilities for reliable, repeatable, and consistent testing. One touch Record and Replay provides an efficient way to test and develop your GNSS products without the cost, inconvenience, and limitations of live-sky signals. SatGen GNSS simulation software delivers bespoke scenarios to test your device at any time, date and any location across the globe.
Contact Sampson Technology to discuss LabSat 14 day evaluation loans, enquire now!
LabSat 4 Lite | LabSat 4 Core | LabSat 4 | |
RF Channels | 3 | 3 | 3 |
Bandwidth | 10-60MHz per channel | 10-60MHz per channel | 10-60MHz per channel |
Quantization | Up to 2Bit | Up to 4Bit | Up to 12Bit |
External Signals | ✗ | ✓ | ✓ |
Replay Only Option | ✓ | ✓ | ✓ |
LabSat 4
Racelogic’s multi-constellation, multi-frequency GNSS testing device with up to 12 bit I&Q quantization.
- 3 Individually configurable RF channels
- Flexible 10-60Mhz bandwidth per channel
- Up to 12 bit I&Q quantization per channel
- Wide frequency range
- 7.68TB internal SSD storage
- SatGen software compatible
- Multi-Sync – tightly synchronise two LabSats for record and replay
- Available in three models: LabSat 4 Lite, LabSat 4 Core & LabSat 4
- Real-time simulation based on incoming NMEA with SatGen 4 Real-Time+
Make sure to download the latest firmware for all feature benefits!
Upgrades are available from LabSat 4 Lite to LabSat 4 Core, and from LabSat 4 Core to LabSat 4.
LabSat 4 also offers a user-friendly, web interface that is fully accessible through most web browsers. This interface allows complete access and control over the device, enabling recording settings to be customised to meet specific needs.
Try a demo version of the LabSat 4 web interface here.
LabSat 3
Racelogic’s compact yet powerful multi-constellation, multi-frequency GNSS device testing system.
- 3 constellations
- 8 simultaneous signals
- 9.66 MHz bandwidth
- 4 bit resolution
- Fully standalone

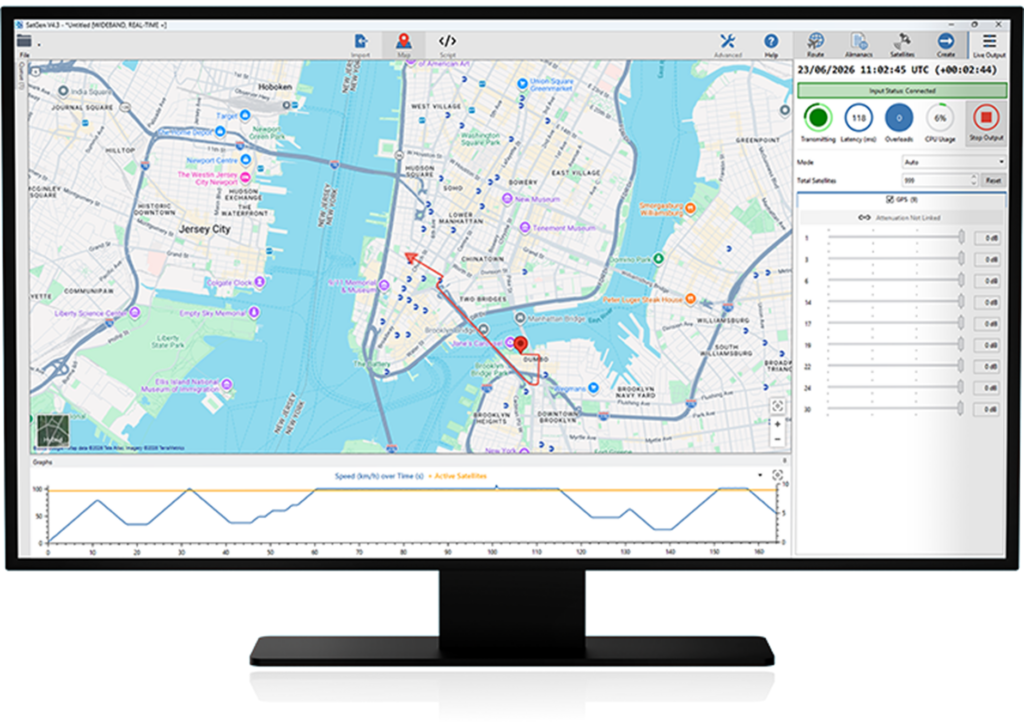

SatGen Real-Time+
SatGen Real-Time+ generates live GNSS RF signals from a continuous NMEA position stream, delivering them directly into your Hardware-in-the-Loop (HIL) test environment via LabSat 4. It enables systems to be tested against signals that respond to real, dynamic motion – in a controlled, repeatable lab environment.
- Generates live GNSS RF signals from a real-time NMEA data stream
- Accepts NMEA GGA/RMC sentences via RS232 or Ethernet, 5-100Hz input rate
- Full wideband, multi-constellation, multi-frequency
- Drop-in integration with existing HIL rigs – no rewiring required
- Live mid-test signal control – adjust attenuation, satellites and constellations on the fly
- Software add-on licence for SatGen Wideband – compatible with all LabSat 4 models

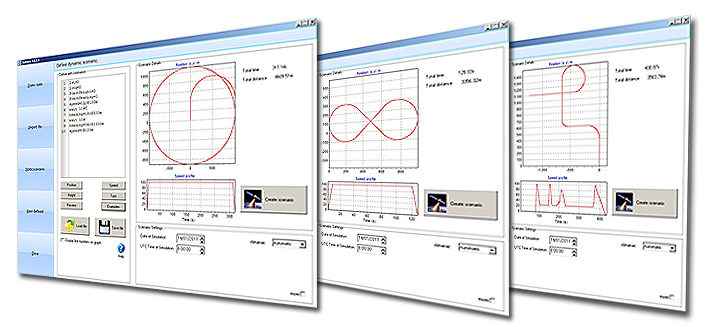

SatGen Software
Create custom simulations for almost any kind of test, at a set time, date and any location across the globe.
- Single, dual, triple and multi-constellation
- Wideband GNSS signals in the upper & lower L-Band
- Compatible with all LabSat systems

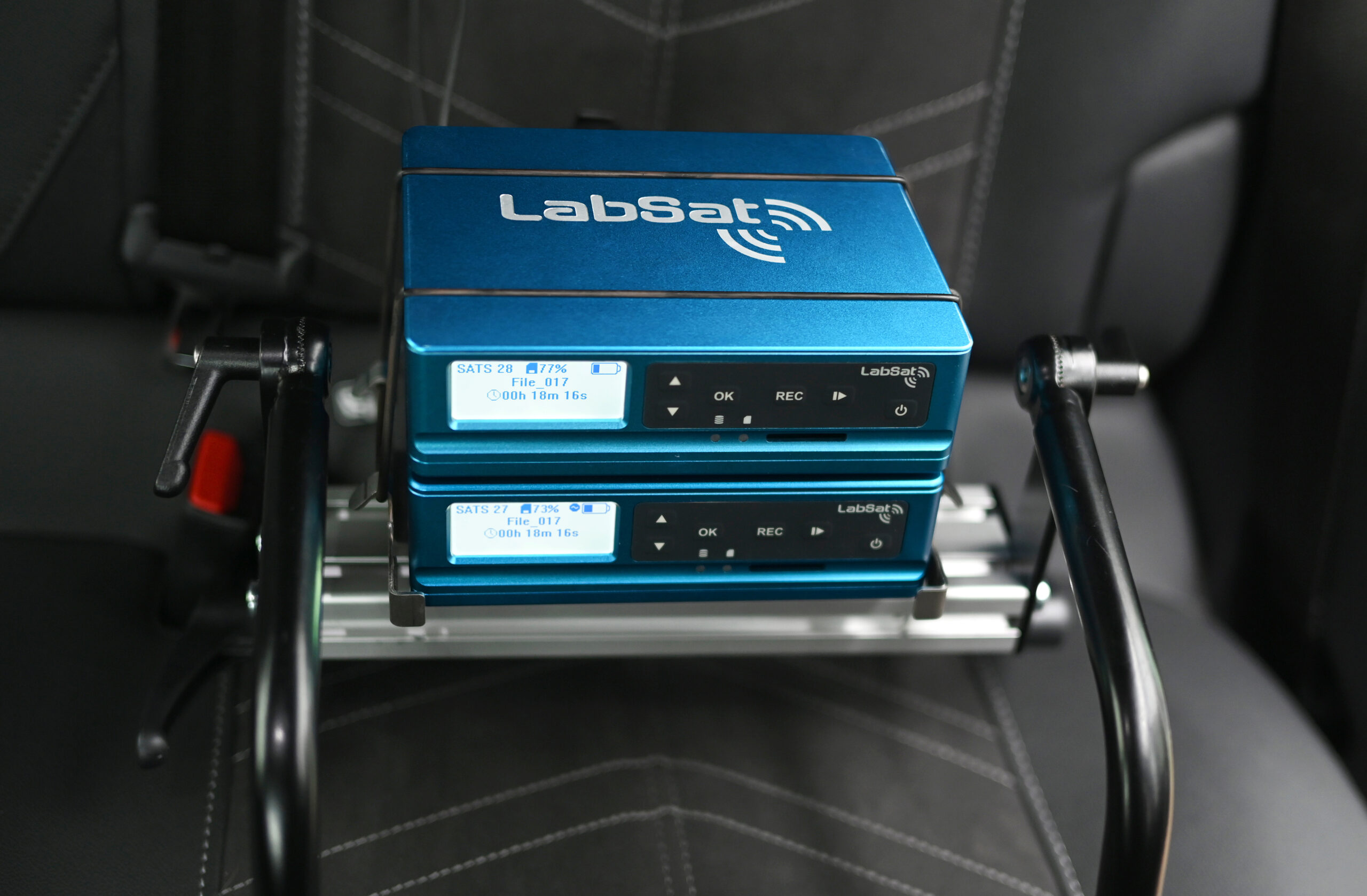

ISOFIX Mount
The ISOFIX Mount can be used in any vehicle with ISOFIX interface, providing an easy solution for securely mounting LabSat or other test equipment during dynamic testing.
- Quick and Easy install
- Secure mounting for one, or two LabSat units simultaneously
- Adjustable support for increased stability
